VANQUISH PRO

Tyre Pressure / Rider Weight Guide
£2,090.00

This is currently a back ordered product, please allow 2-3 weeks for delivery

The Vanquish Pro Series.

The Vanquish Pro Series is HED's full carbon, disc brake masterpiece. The patented shapes make the series the most aerodynamic bike wheels in the world. At HED, compromise is never an option.

Each Vanquish Pro rim is made by hand in Minnesota, U.S.A. and each one goes through multiple layers of quality control. With this level of craftsmanship and the race proven aerodynamic performance of the Vanquish rim profile, the result is truly something special. There’s a spirit to these wheels: a superb, searingly fast ride quality; a true embodiment of HED’s philosophy of Proven Speed.

HED’s Fastest Wheel. Ever.

For HED, that’s saying something, since we have been making world championship winning wheels for more than 35 years. It all begins with our patented rim profiles. Raw carbon is laid up into moulds, cured, and finished. Each rim is completely handmade by our team in Minnesota.

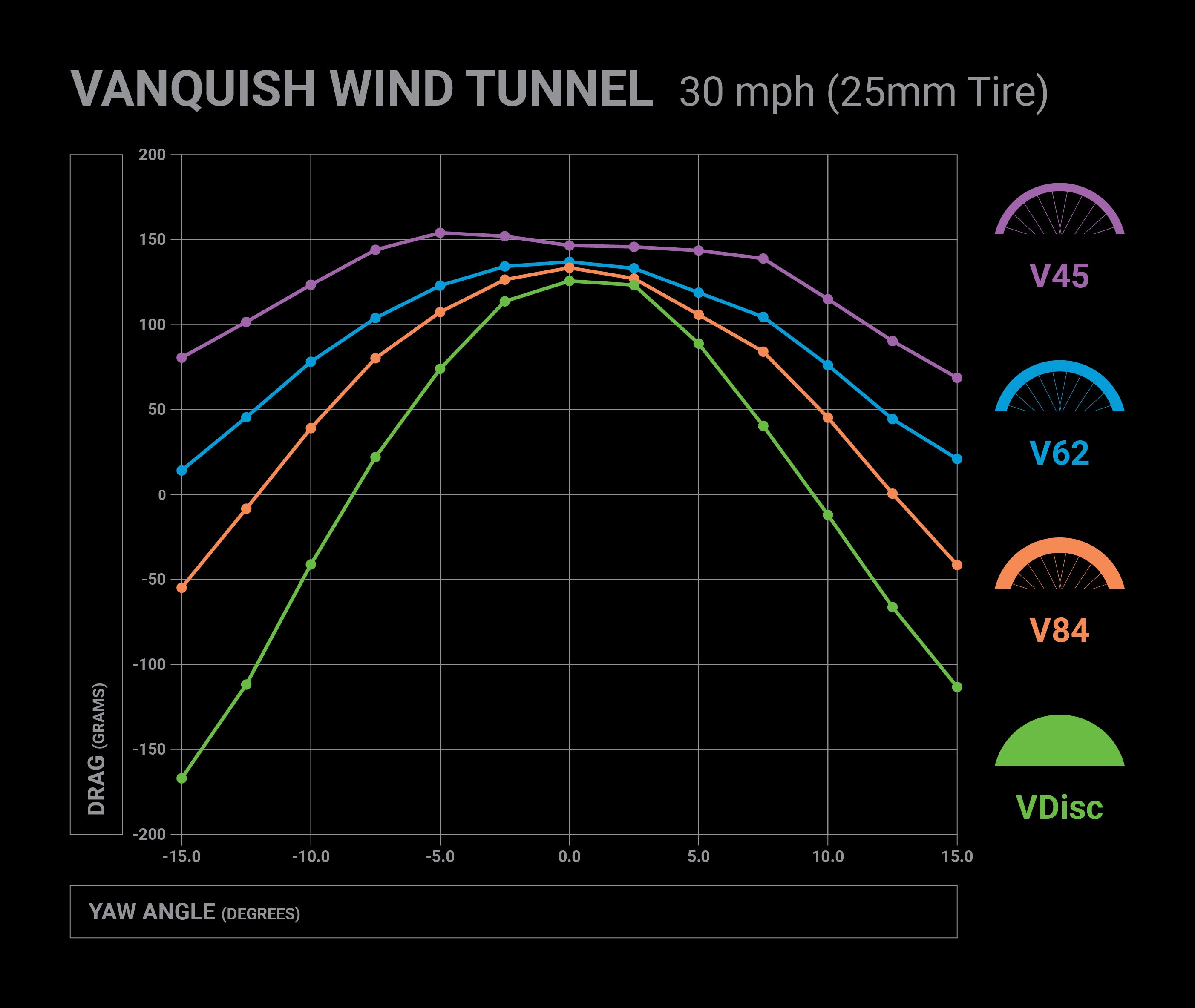

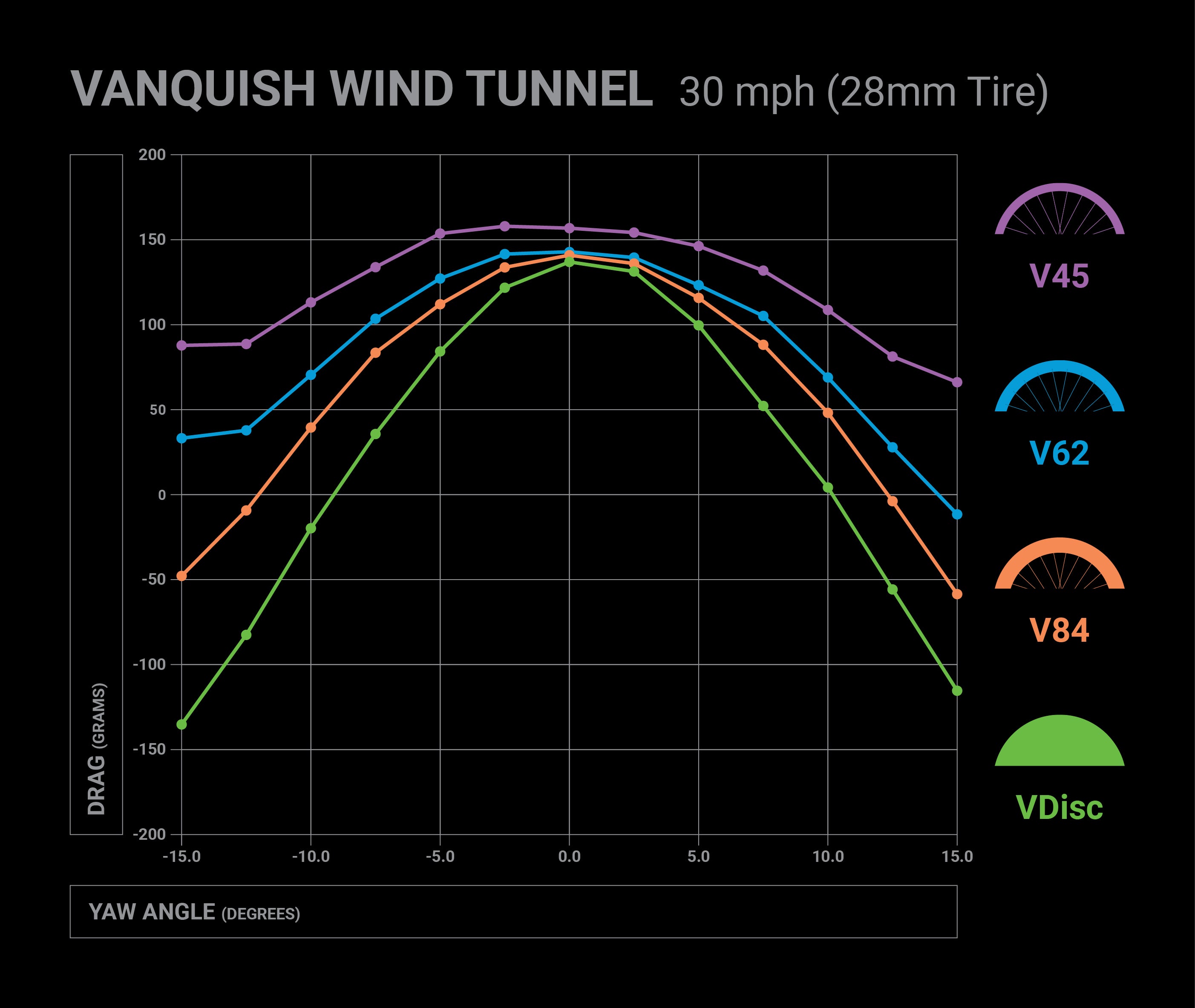

Boasting drag numbers that can drop to negative 100g, the Vanquish Pro series wheels are simply faster than the competition. Blink and you just might miss them.

FEATURES:

  • Handmade in the U.S.A.
  • Rim depths ranging from 45mm to a complete Aero Disc
  • HED Sonic Pro Centerlock Disc Brake Hubs
  • Tubeless Compatible
Technical Notes:

1. For all types of bicycle wheels, a hard strike on the rim is likely to result in rim damage. At the point of impact, an aluminum rim will dent, and a carbon rim may delaminate – both are unsafe conditions that require rim replacement.

2. Tire pressure = 80psi MAX3. Freehub Note: *Campagnolo requires a longer lockring to safely secure 10/11/12 speed cassettes to N3W freehubs.  Cassette dimensions vary, not all Campagnolo cassettes will work with the N3W body on Hed hubs.
Vanquish 45 PRO Specifications

Vanquish 45 Pro Overview:

Intended Use: Road Race/All-RoadTubeless CompatibleInner rim width: 22.4mmOptimal Tire Size: 28cRim Specs:Rim Weight: 415g ± 10gInternal Width: 22.4mmExternal Width: 30.9mmDepth: 45mmHole Count: 24ERD (Includes Washers): 555Wheelset Build:Hubs:Front Hub: 12x100mm axle. CenterlockBearing: EZO Japan 6902RS x 2 Rear Hub: 12x142mm axle. Centerlock.Freehub: 5 pawl: 9 degree engagement.Bearing: EZO Japan 6902RS x 4 Spokes: Sapim Race, hookedWheelset Weights:Front: 701 GramsRear: 798 GramsWheelset: 1499 Grams
Vanquish 62 PRO Specifications

Vanquish 62 Overview:

Intended Use: Road Race/All-RoadTubeless CompatibleInner rim width: 22.4mmOptimal Tire Size: 28cRim Specs:Rim Weight: 490gInternal Width: 22.4mmExternal Width: 30.9mmDepth: 45mmHole Count: 24ERD (Includes Washers): 555Wheelset Build:Hubs:Front Hub: 12x100mm axle. CenterlockBearing: EZO Japan 6902RS x 2 Rear Hub: 12x142mm axle. Centerlock.Freehub: 4 pawl: 13 degree engagement.Bearing: EZO Japan 6902RS x 4 Spokes: Sapim Race, hookedWheelset Weights:Front: 702 GramsRear: 923 GramsWheelset: 1625 Grams
Vanquish 84 PRO Specifications

Vanquish 84 Pro Overview:

Intended Use: Road Race/All-Road / TriathlonTubeless CompatibleInner rim width: 22.4mmOptimal Tire Size: 28cRim Specs:Rim Weight: 560gInternal Width: 22.4mmExternal Width: 30.9mmDepth: 45mmHole Count: 24ERD (Includes Washers): 555Wheelset Build:Hubs:Front Hub: 12x100mm axle. CenterlockBearing: EZO Japan 6902RS x 2 Rear Hub: 12x142mm axle. Centerlock.Freehub: 5 pawl: 9 degree engagement.Bearing: EZO Japan 6902RS x 4 Spokes:Sapim Race, hookedWheelset Weights:Front: 805 GramsRear: 925 GramsWheelset: 1730Grams
Vanquish Disc PRO Specifications

Disc:

Wheel Weight: 1135gHub: HED 5 Pawl PROBearing Type: 6902 2rs Radial
