We stock a small selection of replacement Shimano, SRAM and Campagnolo Freehub Bodies. If you are unsure about fitment, please get in touch

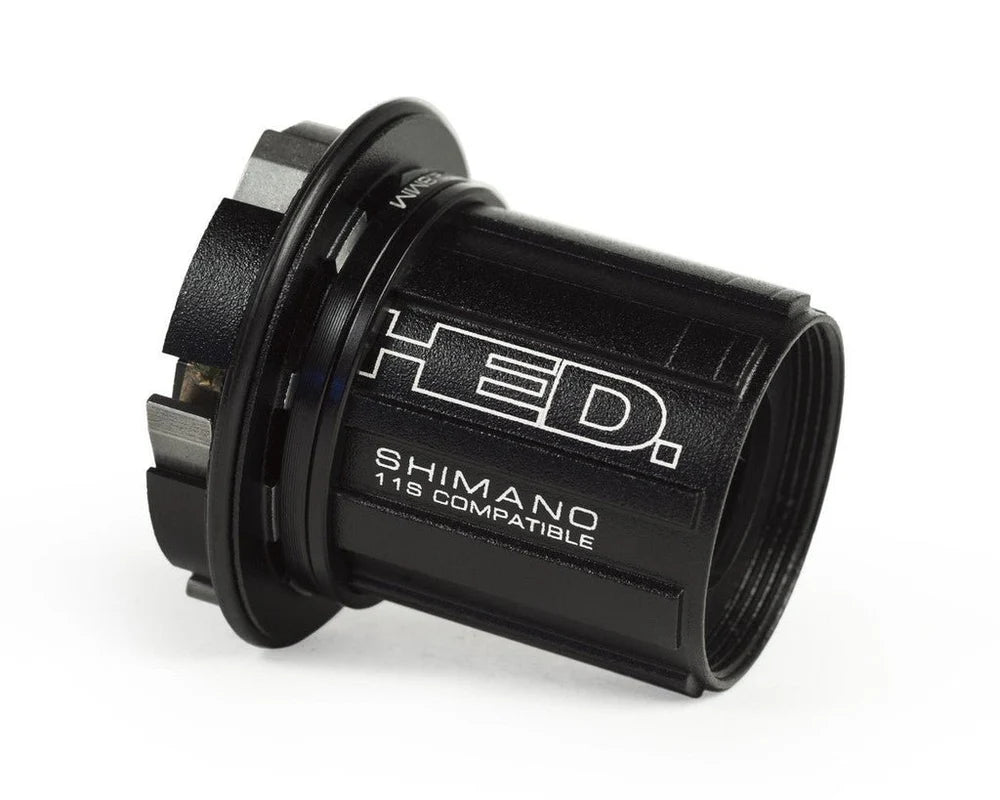

15mm Axle, 3-pawl Sonic Hub 2009-2015 HED Sonic hubs use a larger 15mm axle to increase stiffness and decrease weight. Available for Shimano 9/10/11-speed. End caps are specific to cassette configuration. NOTE: The Shimano 11 version is intended as a replacement cassette body for hubs that were originally sold as 11-speed compatible. If you want to upgrade an older HED hub to 11-speed, you will need to look at our 11-speed conversion kit web page. Note also that Sonic hubs have a 3-pawl drive mechanism.
HU651 - Shimano/SRAM 9, 10, 11-speed *not compatible with Campagnolo freehub wheel

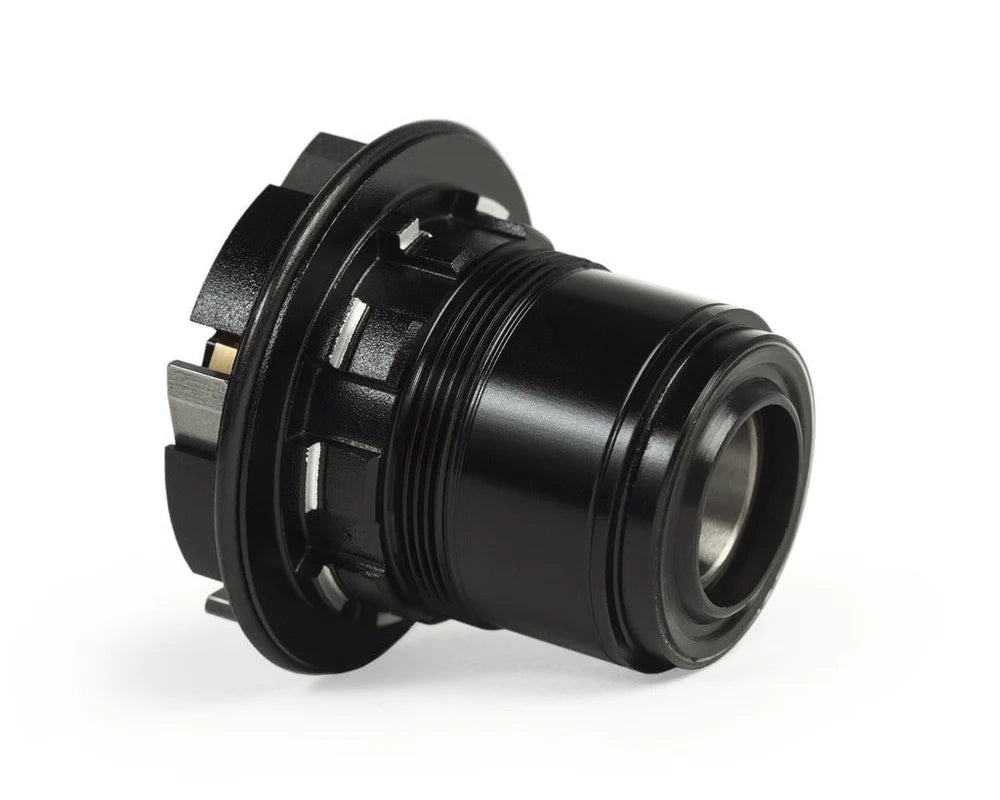

5-pawl Pro Rim Brake and Disc Brake, and Brickhouse (2016+) In 2016, we introduced the 5 pawl rear hub in both rim brake and disc brake versions. We also introduced our new Brickhouse fat bike hub set. Both the Pro and Brickhouse hubs use a new super-durable 5-pawl cassette body, with 15mm hub axle.
HU105 - Shimano HG/SRAM 11, 12-speed
HU656 - Shimano Micro Spline 12-speed
HU206 - SRAM XDR Road 12-speed
HU207 - Sram XD MTB/Fat bike 12-speed
HU655 - Campagnolo 9, 10, 11, 12-speed *Discontinued
HU658 - Campagnolo N3W Ekar compatible only
Performance Disc Brake Hub 4-pawl GP Ardennes Performance / Vanquish Performance / Emporia Performance wheels take a special 4-pawl cassette body not used on any other HED wheels.
HU652 - 4-pawl - Shimano HG/SRAM 11, 12-speed
HU654 - 4-pawl - Sram XDR Road 12-speed
HU657 - 4-pawl - Shimano Micro Spline 12-speed
HU659 - 4-pawl - Campagnolo N3W Ekar compatible only
