VANQUISH / V45 & V62

Tyre Pressure / Rider Weight Guide
£1,405.00
This is currently a back ordered product, please allow 2-3 weeks for delivery - Contact Us

Designed by the same minds and handmade by the same hands that created the Vanquish Pro series. This wallet-friendly option offers the same aerodynamic rim profile and performance edge as the Pro line at a price point that saves room in the budget for a few equally fast kits. Going fast is about drag reduction AND predictability.

Get ready to turn heads at the next group ride.

Need a 84mm or Full Aero Disc? Go Pro: Click Here

FEATURES:

  • Handmade in the USA
  • Rim depth options of 45mm and 62mm
  • 22.4mm Internal Width, 30.9mm External Width Rims
  • HED GP Performance Centerlock Disc Brake Hubs
  • Tubeless Compatible
Technical Notes:

1. For all types of bicycle wheels, a hard strike on the rim is likely to result in rim damage. At the point of impact, an aluminum rim will dent, and a carbon rim may delaminate – both are unsafe conditions that require rim replacement.

2. Tire pressure = 80psi MAX3. Freehub Note: *Campagnolo requires a longer lockring to safely secure 10/11/12 speed cassettes to N3W freehubs.  Cassette dimensions vary, not all Campagnolo cassettes will work with the N3W body on Hed hubs.

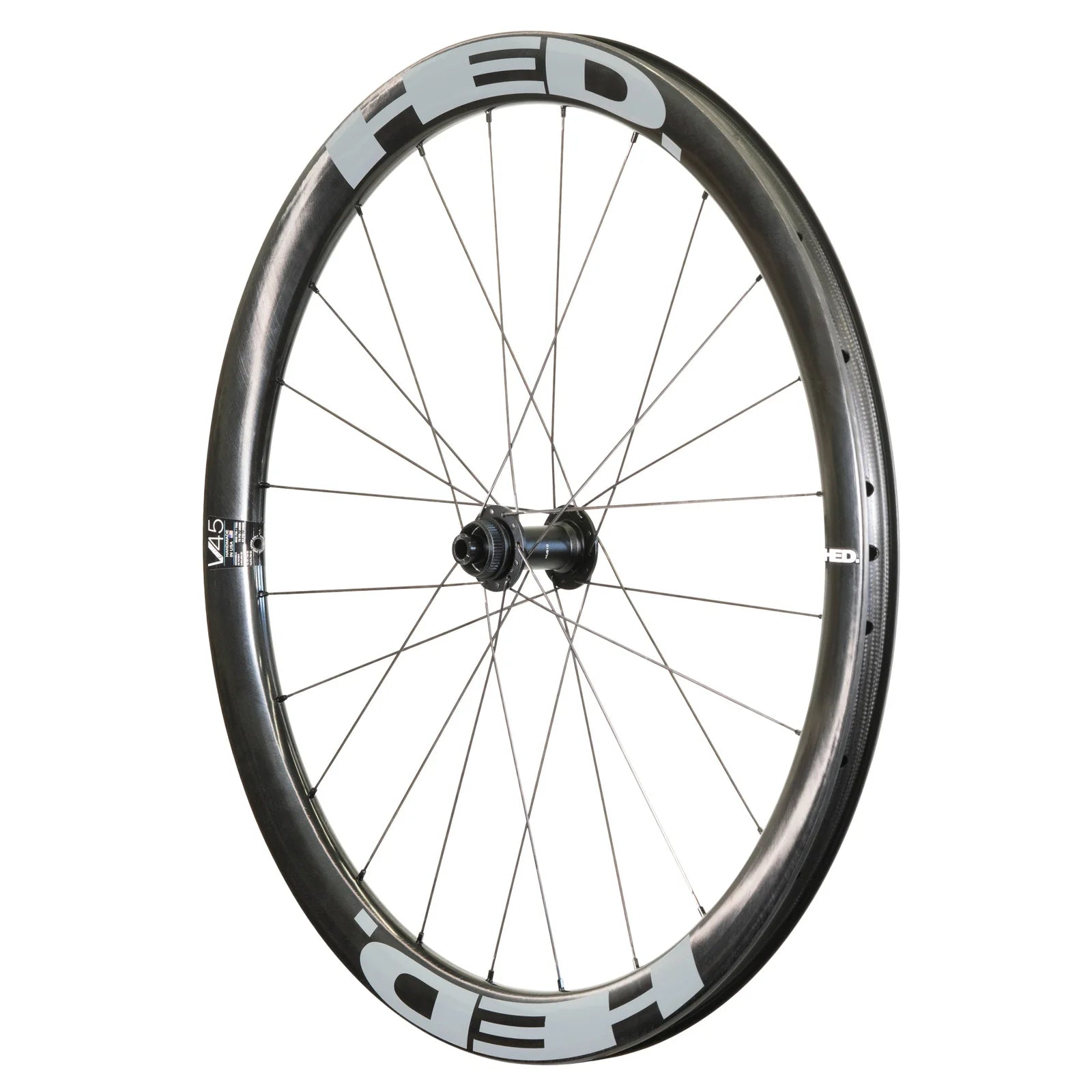

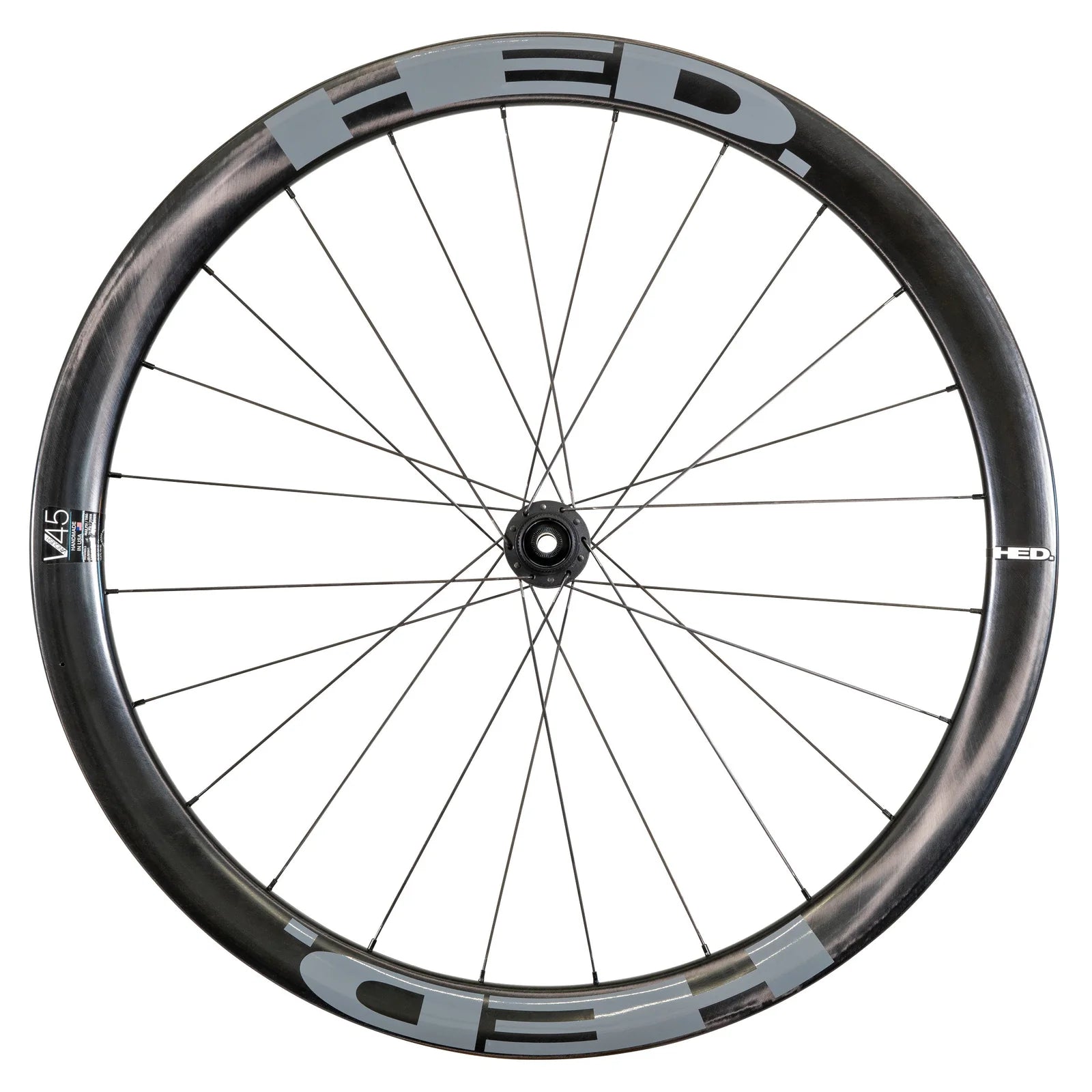

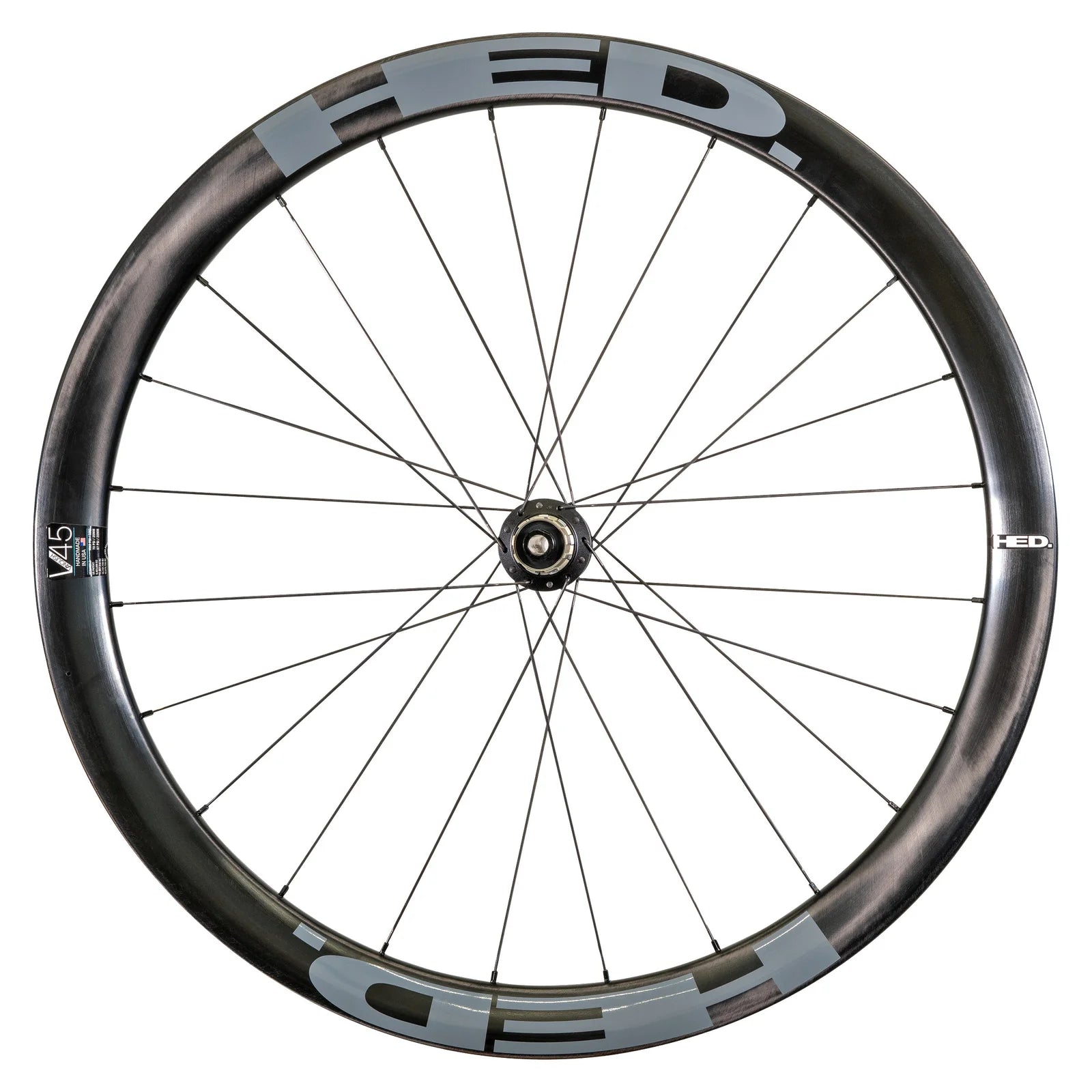

Vanquish 45 Specifications

Vanquish 45 Overview:

Intended Use: Road Race/All-Road
Tubeless Compatible

Inner rim width: 22.4mm
Optimal Tire Size: 28c

Rim Specs:

Rim Weight 453g ± 60.4g
Internal Width: 22.4mm
External Width: 30.9mm
Depth: 45mm
Hole Count: 24
ERD (Includes Washers): 555
Wheelset Build:

Hubs:
Front Hub: 12x100mm axle. Centerlock
Bearing: EZO Japan 6902RS x 2
Rear Hub: 12x142mm axle. Centerlock.
Freehub: 4 pawl: 13 degree engagement.
Bearing: EZO Japan 6902RS x 4

Spokes:

 Sapim Race, hooked

Wheelset Weights:

Front: 757 Grams

Rear: 896 Grams

Wheelset:1653 Grams

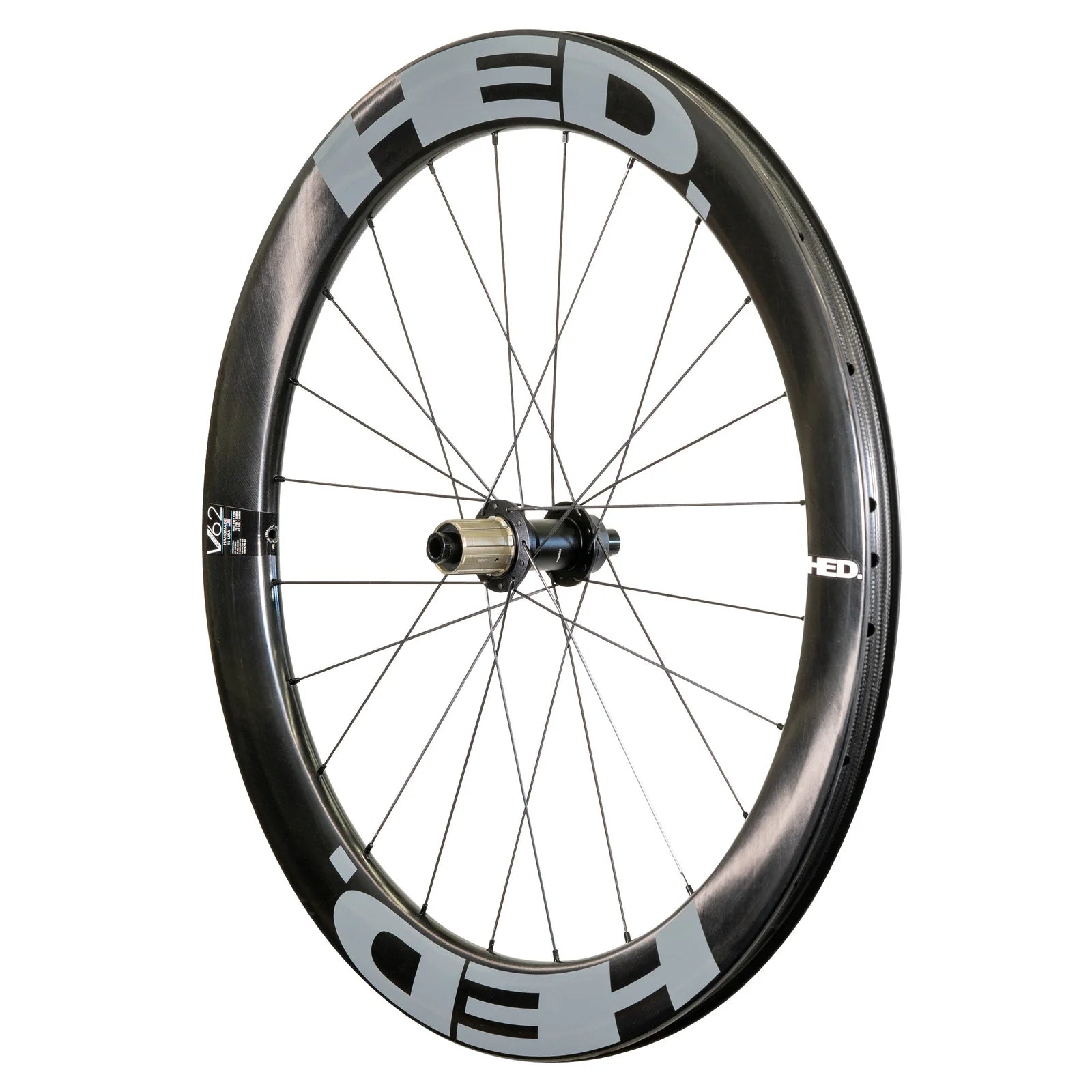

Vanquish 62 Specifications

V62 Overview:

Intended Use: Road Race / TT / Triathlon

Tubeless Compatible

Inner rim width: 22.4mm

Optimal Tire Size: 28c

Rim Specs:

Rim Weight 518g ± 2.3g

Internal Width: 22.4mm

External Width: 31.1mm

Depth: 62mm

Hole Count: 24

ERD (Includes Washers): 524

Wheelset Build:

Hubs:

Front Hub: 12x100mm axle. Centerlock brake

Bearing: EZO Japan 6902RS x 2

Rear Hub: 12x142mm axle. Centerlock brake

Freehub: 4 pawl: 13 degree engagement.

Bearing: EZO Japan 6902RS x 4

Spokes:

Sapim Race, hooked

Wheelset Weights:

Front: 789 Grams

Rear: 921 Grams

Wheelset: 1710 Grams
